Using networking

DoudouLinux can handle both wired and wireless networks. As usual, it will ask as few questions as possible. If you are using a wired network, it will configure the network automatically, without asking anything. If you are trying to connect to a wireless network, it may ask you for a password to access the network. You should then be able to surf the web. That’s all!

Notes:

• Only the most advanced activity Whole DoudouLinux has the right to connect to a network. You will not be able to reach any network until you enter this activity; however, once the network connection is active, networking remains available from within any other activity.
• We recall that DoudouLinux is always accessing the Internet through an internal web filtering software. Children can then be safely allowed on the Internet without much assistance. Please refer to the page Parental controls for more information.

The network manager tool

The network manager tool is displayed in the top right panel, between the help icon and the clock. Its icon indicates the status of the network connection:

• not connected
• wired connection, local
• wired connection, Internet
• Wifi connection

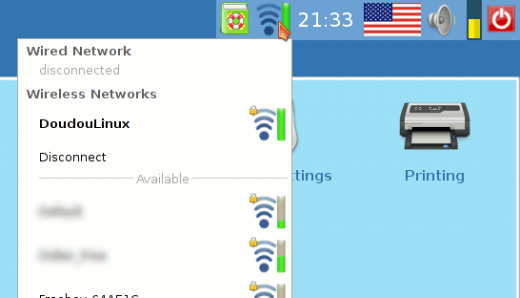

If you click with the left mouse button on the icon, the network manager will display a list of the available networks:

• At the top of the list is the wired network, gray if not plugged-in.
• Next, the list of Wifi access points, if DoudouLinux can use your Wifi equipment.

Liste des réseaux disponibles

Once connected to a network – wired or not, you can change the connection point by simply clicking another network in the list. The network manager indicates the connection status in the panel:

Network not connected

Network search

Network being connected

Network connection active

Wired networks

Just plug-in the network cable and you will see two green lights blinking in the top right panel. When networking is ready, the lights disappear and the panel icon shows the network status. Depending on your network, you will be able or not to reach the Internet:

• If your network is providing full automatic configuration, DoudouLinux will access both your local network and the Internet. This is the case of ADSL boxes and network routers.
• If your network is only providing IP addresses automatically, DoudouLinux will access your local network but not the Internet. This is usually the case of professional local networks, also known as Intranet.
• If your network is fully manually set, DoudouLinux will find a compliant configuration, which does not mean that you will access other devices of the network. All we can say is that several DoudouLinux computers will be able to discuss together, using the instant messaging software Empathy for example.
• If your network is just a wire between two computers, DoudouLinux will also find a compliant configuration. Two DoudouLinux computers are then able to communicate with each other.

Wireless networks

If DoudouLinux is handling your wireless equipment, you should see two green lights blinking in the top right panel as soon as you enter the most advanced activity Whole DoudouLinux. When the Wifi has been connected, the lights are transformed into a small bar graph indicating the connection signal strength. Depending on the Wifi configuration, you may be asked to enter a password. Note that some public Wifi allow anonymous connections but then require to enter a password on a web portal: you will need to open the DoudouLinux web browser Epiphany to activate the Internet connection.

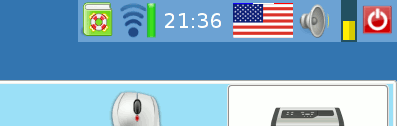

Wifi active, showing signal strength

The first time you are connecting to a given Wifi network with authenticated access, the network manager will ask you for the password. Detection of authentication mode is automatic (ie., mostly WEP or WPA [1]). The password can be recorded in the key manager for your convenience. This is why the very first time a WEP/WPA key is asked, you are first asked for a password for the key manager, before the network access password is requested. The process is the following:

1. Wifi connection is set.
2. The password manager asks you for a password to encrypt your WEP/WPA keys.
3. If you enter a password and press the button “Accept”, then you will have to type this password each time the network manager is trying to reach any previously registered key.
4. You can give no password as well if you want your children to access the Internet freely.
5. If you click the button Discard, the WEP/WPA key is not recorded in DoudouLinux. But each time you try to connect to a wireless network, the key manager will ask you what to do.

Supposing that you accepted the password manager to manage your WEP/WPA keys, each time you are trying to connect a previously registered Wifi, everything will happen automatically, without any question. And when you will try to reach a new Wifi, you will just have to enter the new password for this network.

Finally, you can manage your Wifi networks. To do this, click the right mouse button on the network icon in the top right panel, then chose “Edit networks”. An interface will raise and show the list of all the recorded networks:

Édition des réseaux Wifi enregistrés

Troubleshooting

I plugged the wire and nothing is happening

Please first check that lights are blinking on your network computer plug. If yes, your wired computer equipment is likely not handled by DoudouLinux. Either the driver is missing for your equipment, or the firmware, the small software that makes the Wifi equipment run. Firmware are not always available depending on the provider policy relative to Linux. This should not happen if your equipment is not so recent (≥ 2 years).

Wifi is not proposed in the list

This means that your Wifi equipment cannot be used by DoudouLinux. This is, sadly, not so rare with very recent hardware. Either the driver is missing for your equipment, or the firmware, the small software that makes the Wifi equipment run. Firmware are not always available depending on the provider policy relative to Linux.

Can I use a low bandwidth RTC modem?

Linux is able to use a low bandwidth RTC modem to connect to the Internet but probably not with the network manager we installed. Unfortunately, we haven’t made any test to use this kind of connection and cannot tell more about this.

He says I’m using a self-assigned address

This is happening when automatic wired network configuration failed. As indicated above, this will not prevent two DoudouLinux computers to communicate together, but you may not be able to reach other devices depending on their own network configurations. You will surely not be able to reach the Internet without manual configuring, which is a very technical operation and is not described in this documentation.
